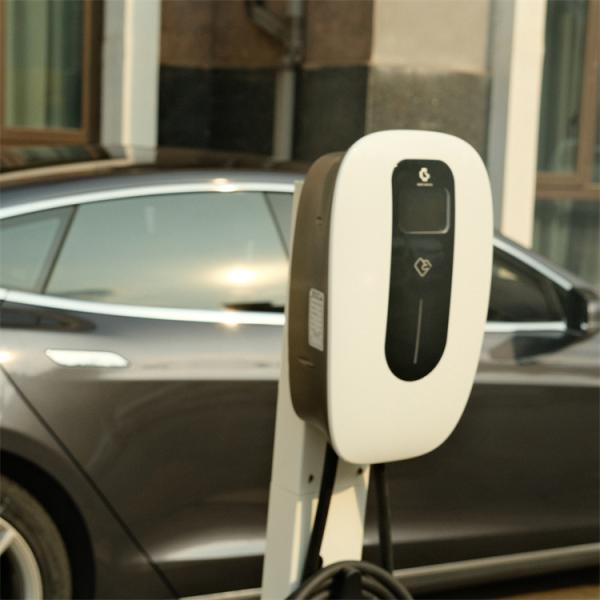

Type 2 EVSE 11KW Floor-Mounted EV Charger 16A EV Charging Station
Advantages:
1.This EV charger is a charging device that can be used to charge a electric vehicle, it has type 1 and type 2 for option, 3.5 meter cable and plug.
2.Simple structure: this EV charger is lightweight and it occupies a small space, so it's very portable be and easy to fixed.
3.Its intelligent hardware communicates with your vehicle for safe, simple and efficient charging.It has different functions for your option,such as: LCD Screen/WIFI/Bluetooth/4G/Ethernet and OCPP.
4.The product shell is fashionable and beautiful, we have various colors for you to choose from,such as: white, black, orange, purple, blue, grey, green. Besides, you can also customize different colors according to your preference.
5.Overall protection level reaches IP65, which has good dust and water resistance, so you can install and operate safely both indoors and outdoors.
Specifications:
| Product Name | EV Charging Station (WallBox) |
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Rated Current | 32A | 16A | 32A |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A |
| Rated Power | 7KW | 11KW | 22KW |
| Package | Unit Size | 340*285*147mm |
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS |
| Communication | WIFI | Optional |
| 3G/4G/5G | Optional |
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) |
| User Interface | Charging Port | Type 1/ Type 2 |
| Cable Length | 3.5M or customization length |
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized |
| Start Mode | Plug&Play / RFID Card / APP |
| Emergency Stop | YES |
| Environment | Installation | Wall-mounted Pole Mounted |
| Work Temperature | -25℃-+50℃ |
| Work Humidity | 5%-95% |
| Work Altitude | <2000M |
Our Company:
Sichuan Tianfu Xiongzhou Group was founded in 2010, located in Xincheng District, Jianyang City, Sichuan Province. We are committed to the R&D and sales of IT intelligent products. In 2016, Sichuan Tianfu Xiongzhou Intelligent Engineering Co., LTD was established, we focus on the R&D and sales of intelligent charging piles, plugs, connectors and other auto parts. We can design and manufacture AC charging piles in accordance with China (GB)/European Union (CE)/United States (UL) standards and software platforms equipped with OCPP 1.6 protocol according to customer requirements.
Our goal is not only to provide customers with products, complete solutions for product design, manufacturing and pre-sales & after-sales services, complete solutions to meet customer needs as the premise, with the premise of satisfying customers' needs and establishing long-term strategic partnerships with customers, ultimately achieving a win-win situation.
Note
1.OEM/customization supported.
2.Any needs please feel free to contact us.
3.We will reply your inquiry in 24 hours.
4.If you have any questions about the charger, please contact us.
5.The above for reference only, please contact us to get more details.
