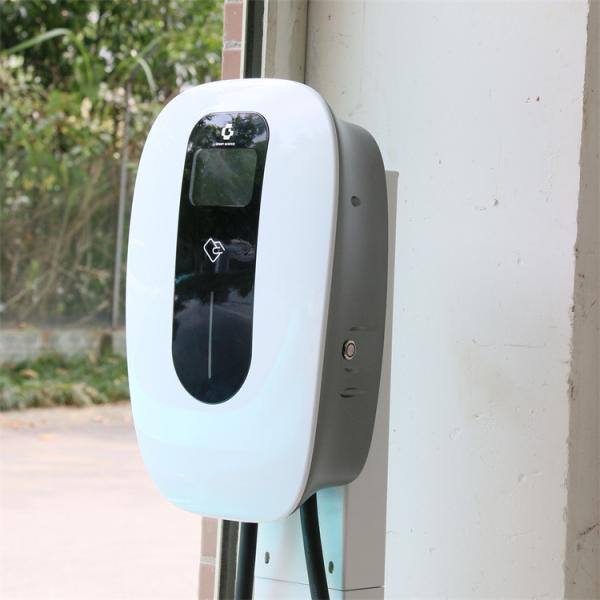

3 Phase Mobile Electric Vehicle Charger 380W 11KW With CE Certificate
Floor Mounted EV Charger 11KW Mobile Electric Vehicle Charger 32A 3 Phase
Quick Detail:
Model Number: GS11-AC-B01
Rated Voltage:380V AC
Rated Current: 16A
Rated Output Power: 11kw
Charging Port: Type 2 Cable
Cable Length: 3.5M/Customized
Communication: 3G/4G/5G, WIFI or Bluetooth Optional
Start Mode: Plug and Play/RFID card/App
Function: APP Control, screen display, Voltage Monitoring
Specifications:
| Product Name | EV Charging Station (WallBox) |
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Rated Current | 32A | 16A | 32A |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A |
| Rated Power | 7KW | 11KW | 22KW |
| Package | Unit Size | 340*285*147mm |
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS |
| Communication | WIFI | Optional |
| 3G/4G/5G | Optional |
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) |
| User Interface | Charging Port | Type 1/ Type 2 |
| Cable Length | 3.5M or customization length |
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized |
| Start Mode | Plug&Play / RFID Card / APP |
| Emergency Stop | YES |
| Environment | Installation | Wall-mounted Pole Mounted |
| Work Temperature | -25℃-+50℃ |
| Work Humidity | 5%-95% |
| Work Altitude | <2000M |
Our Advantages:
Sichuan Tianfu Xiongzhou Intelligent Engineering Co., Ltd. was founded in 2016, locates in Chengdu. We dedicate in providing package technique and products solution for intelligent efficient and safe application of energy resources, and for energy saving and emission reduction. Through continuous technical innovation and marketing accumulation, We grown to be a professional supplier for EV charging facility and solutions.
1. Smart EV charger manufactured with GB, CE and UL certificate.
2. Internationalized sales team with 100% working enthusiasm.
3. Each EV charger passes water leakage test before leaves factory.
4. Direct Manufacturer =High Quality +Competitive price + Good Service.
5. One of the famous companies in the industry.
6. The quality of products has won the praise of domestic and foreign customers.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Notes:
1.LCD Screen/WIFI/Bluetooth/4G/Ethernet and OCPP are optional functions,all the information is for reference only, it doesn't mean the device you get have all such functions.
2.We are committed to the continuous improvement and update of the prod product hardware and software will continue to upgrade, the information provided is subject to change without prior notice.
